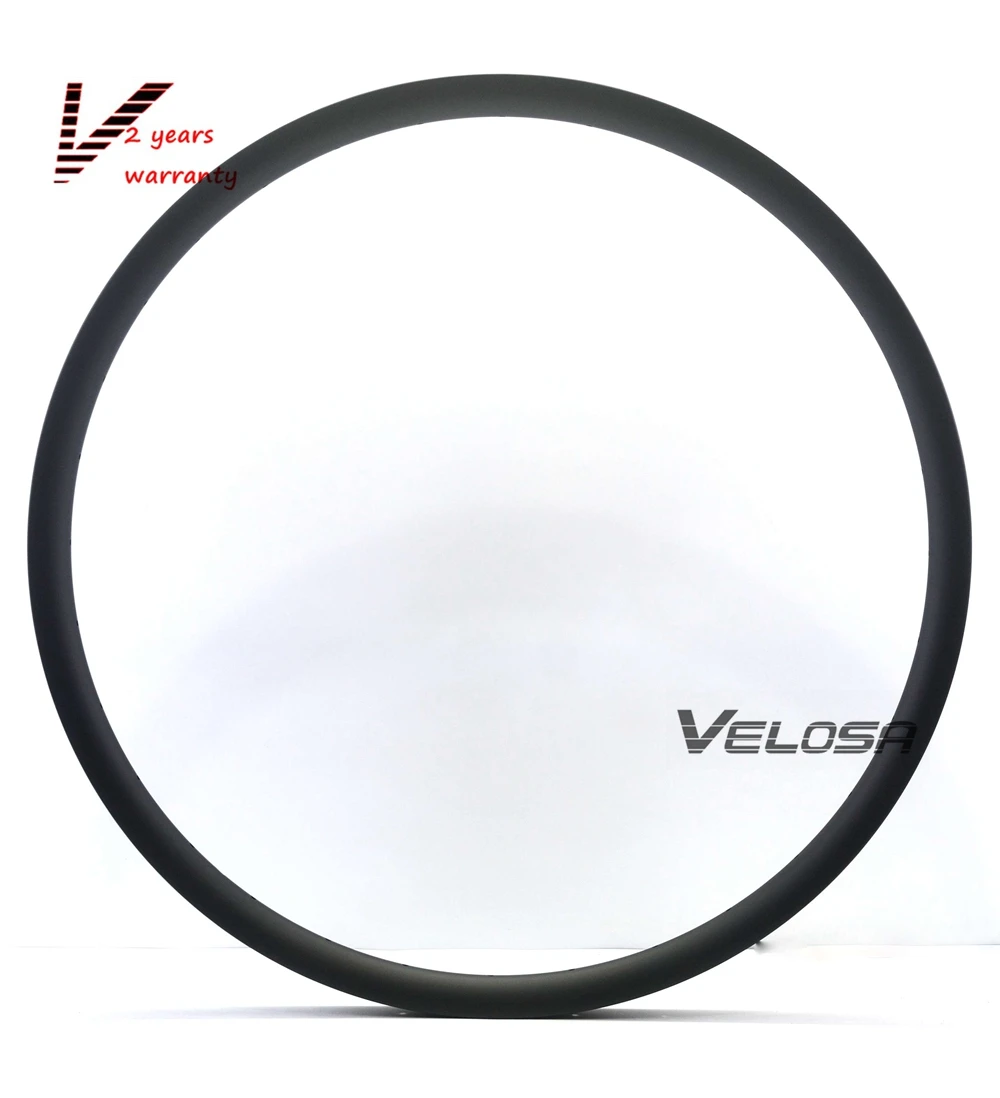

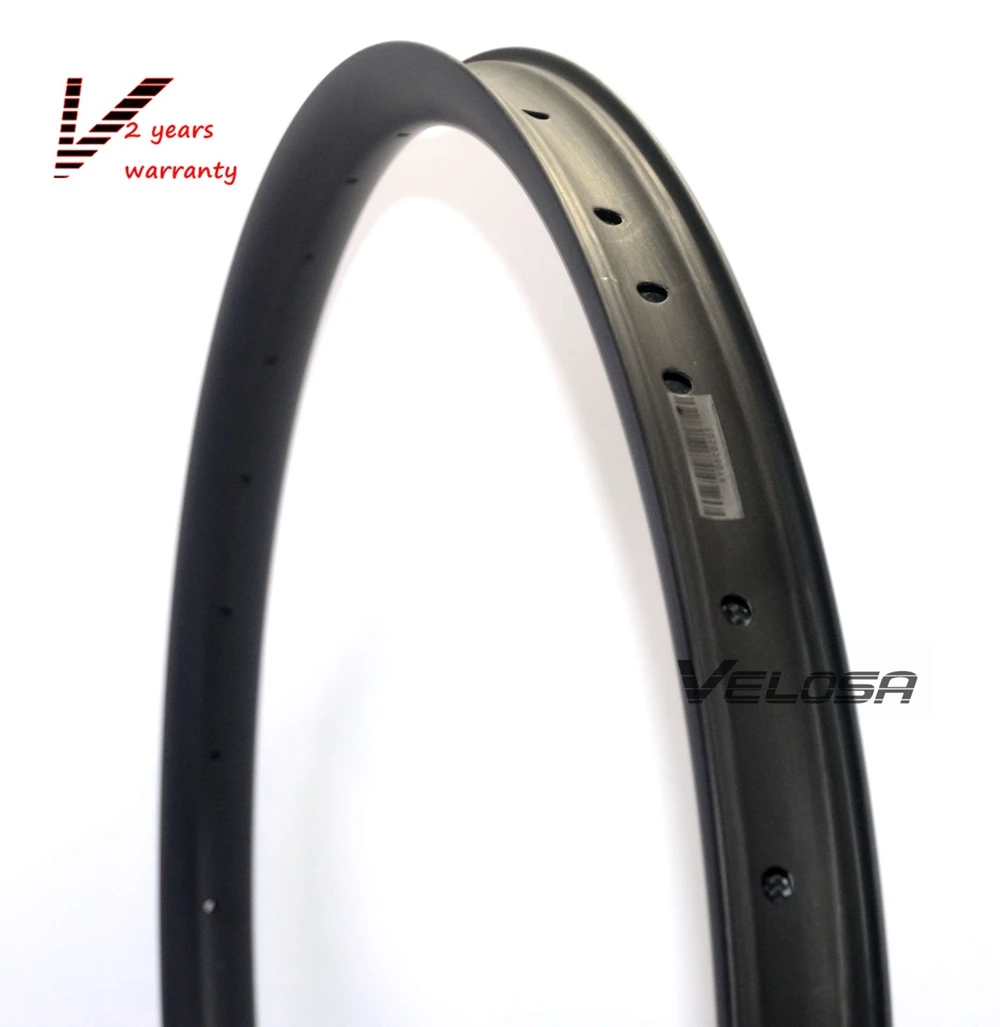

Asymmetrical 27.5inch/650b Mountain Bike Carbon Rims 27.5 inch MTB AM/DH asym Rims tubeless ready

From R5949.61
  • Color:

Categories:

Buy With Confidence

100% Safe Payment

;

  • Description

    xdb

    NEW arrival Asymmetrical 27.5inch/650b Mountain Bike Carbon  Rims MTB AM/DH Rims

    Hookless Tubeless compatible

    Hand-built carbon mountain bike 27.5inch/650b AM/DH rims

    mas2701

    Model:
     MAS2701
    Type:  Clincher  ( hookless )
    Size:
     27.5 inch
    Outer width:  35mm
    Rim depth:
     25mm
    Weave&Finish:  3K or UD
    Spoke holes :
     24/28/32/36
    Spoke hole:  External or Internal
    Brake track:
     /
    Tubeless compatible:  Yes
    Standard:  EN Weight:  380±15g/pc – AM (430-DH)
    Warranty:
     2 years under normal using
    Note:







    12x135

    mas2702

    Model:
     MAS2701
    Type:  Clincher  ( hookless )
    Size:
     27.5 inch
    Outer width:  40mm
    Rim depth:
     25mm
    Weave&Finish:  3K or UD
    Spoke holes :
     24/28/32/36
    Spoke hole:  External or Internal
    Brake track:
     /
    Tubeless compatible:  Yes
    Standard:  EN Weight:  410±15g/pc – AM (460-DH)
    Warranty:
     2 years under normal using
    Note:





    Offset Asymmetrical Design

    Asymmetrical rims build up into stiffer, stronger and more reliable wheels by improving the bracing angles of a dished wheel and equalizing the spoke tensions between the drive and non-drive side spokes. On a Road bike wheelset with disc brakes, both the front and rear wheels have significant dish. With traditional rims, the rim is centered (or dished) by decreasing spoke tension on one side relative to the other so that the rim is pulled into center.

    asy



    tec

    cWe can make customized painting for the rims, if you want custom logos, please contact us.



    NOTE:

    If you decide to purchase,

    please choose from the following order spec template and leave a message to us.



    WEAVE: 3K or UD

    FINISHING: Matte or Glossy

    Spoke holes type: For internal nipples or For external nippls

    Spoke holes count:



    Detailed Pictures

    40-140-2

    as2as3as4


    29-1

    Shipping and Delivery

    We ship to worldwide countries, via EMS/DHL/China Post Air Parcel.

    China Post Air Parcel will take 15-30 business days.

    EMS reach most of the countries in 7 to 20 business days.

    Delivery time depends on destination and other factors,China Post Air Parcel and EMS may takes up to 60 business days;

    DHL usually takes 2-7 business days, and it may take up to 12 business days because of the destination and other factors;

    In some European country ,custom duties is very high, we recommend XDB express.

    The shipping cost will be expensive than EMS,  but this shipping mode can help you  safe  the taxes and custom duties.



    Pls NOTE:

    We are not responsible for:

    (1)Compensating you for payment of any import or value added taxes caused by your countries

    (2)Products seized by your local customs.We can’t control any option or right that customs holds.

    (3)Any delays, accidents or any other issues incurred by the shipping companies or the weather.



    Warranty

    We provide 2-year-warranty for our carbon rims.



    If there are any manufacturing defects found, we are responsible to do replacement within 30 days

    without any extra cost collected.

    warranty

    However, the warranty does not cover:

    Normal wear  of braking surface/pads/bearings and pawls in the hub and improper assembly or follow up maintenance,

    damage or failures caused by a crash, impact, abuse of the product,

    non-compliance with manufactures specifications of usage or any other fractious reasons;

    When the serial number or production code has been deliberately altered, defaced or removed.
